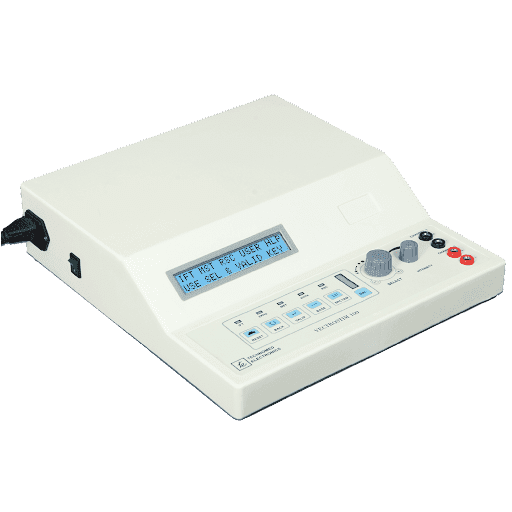

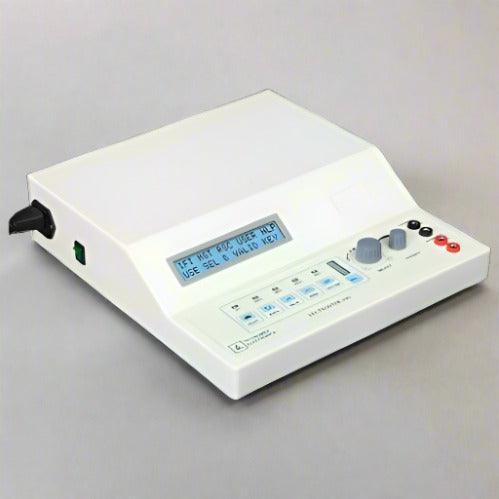

Vectrostim – 100 is an advanced three in one interferential therapy machine with all features of Vectrodyne – 100 plus Muscle Stimulation and TENS. Vectrostim – 100 comes feature packed with a Dia-dynamic current which is a very effective method of muscle stimulation. Vectrostim -100 uses a rugged linear power supply. Compact and lightweight makes the unit, PORTABLE, particularly designed to be accommodated in a Brief Case.
Vectrostim – 100 provides advanced features like Vector Scan ( 45 degrees and 90 degrees), automatic intensity control making it safe to use by avoiding accidental wrong settings of intensity and the on-screen help Program.
Vectrostim-100 Technical Specs (IFT)
| No. of Channels: |
2 Channels |
| Output Current: |
0 – 75 mA |
| Output Frequency: |
IFT
Channel I – 4000 Hz – 4250 Hz
Channel II – 4000 Hz (Constant)
2000 Hz mode also available
|
| Interference Frequency: |
Base – 0 Hz – 150 Hz
Spectrum – 0 Hz – 150 Hz |
| Modes : |
2EL/4EL/4EL45 VECTOR/4EL90 VECTOR |
| Sweep Patterns : |
Triangle/Square/Trapezoidal |
| Vector Scanning: |
45 & 90 Degrees |
Vectrostim-100 Technical Specs (MST&TENS)
| Number of Channels: |
2 Channels |
| Maximum Output Current: |
0-60mA |
| Modes: |
Plain Galvanic, Pulsed Galvanic,
Plain Faradic, Surged Faradic programs,
s-d curve programs, Ionto,
Plain TENS, Surged TENS |
| Additional currents: |
Dia Dynamic current & Russian Current |
| Operating Voltage: |
220 VAC, 50 Hz |
| Weight: |
3.5 Kgs |
| Max Power Consumption: |
50 Watts |
Vectrostim-100 Other Specifications
| Operating Voltage: |
220V AC / 50 Hz |
| L x B x H: |
30.5 x 32 x 10 cms |
| Weight: |
3.5 Kgs |
