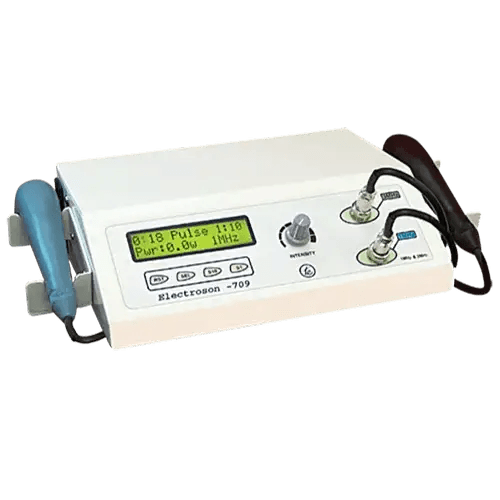

    ELECTROSON 709

    Call us at 080-25353641 or

    email us at info@medilabindia.com for pricing and other details.

    Product description

    Electroson 709 is advanced microcontroller based dual frequency ultrasound therapy equipment. It combines the functions of both 1 MHz & 3 MHz  Zoomed backlight LCD panel and a soft touch membrane keyboard enables the physician to set the parameters easily. 1 MHz is used for deeper penetration and 3 MHz is used for superficial treatments. Additionally 3 MHz is used to produce thermal effects very useful in heating the muscles. Thus a combination of both makes Electroson 709 an advanced ultrasound therapy machine.

    Ultrasound Frequency:  1 MHz & 3 MHz
    Maximum Output:  12 Acoustic Watts Max.
    Ultrasound Power Density:  2.5 Watts / cm2
    Treatment Time:  0 – 99 Minutes
    Mode of Operation:  Continuous and Pulsed
    Diameter of Transducer Head:  35 mm
    Alarms:  Audio Alarm at the end of
    treatment with auto cutoff.
    Pulse Durations:  1:1  –    2 msec ON 2 msec OFF
    1:4  –    2 msec ON 8 msec OFF
    1:7  –    2 msec ON 14 msec OFF
    1:10  –    2 msec ON 20 msec OFF

     Ultrasound Therapy Unit Other Specifications:

    Operating Voltage:  220V AC / 50 Hz
     Max Power Consumption:  46 Watts
    H x D x W:  300 x 260 x 75
    Weight: 4.2 Kgs

    Ultrasound Therapy Unit Standard Accessories:

    1 MHZ Transducer Handle assembly.
    3 MHZ Transducer Handle assembly.

     For more details / price contact us at

    Phone: +91 9480529536 / 7019715711 OR Email : info@medilabindia.com
