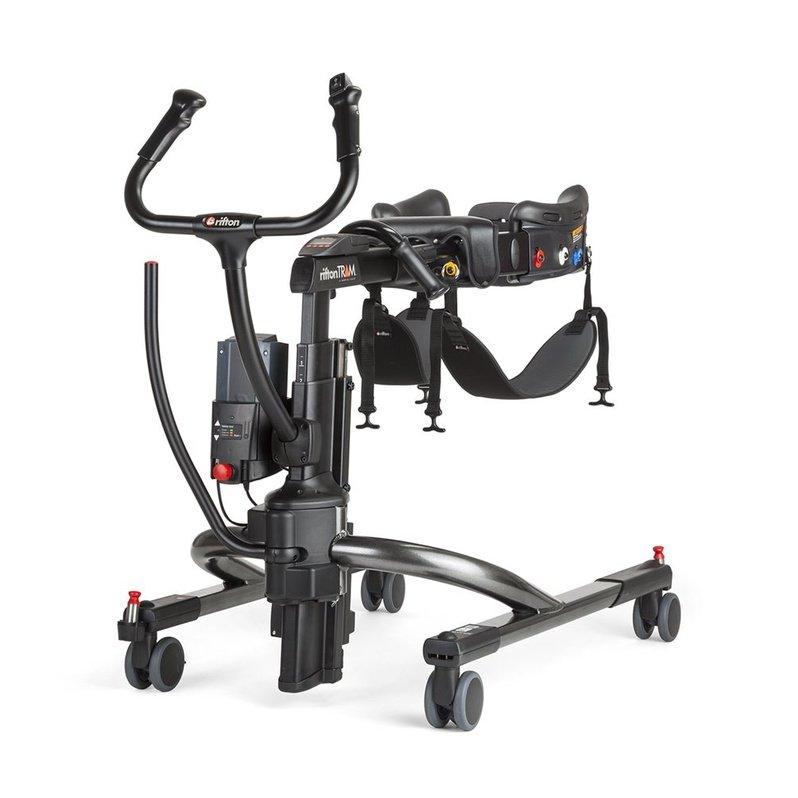

The TRAM is a transfer and mobility device designed to deliver three powerful functions in one compact unit: gait training, sit-to-stand transfers and seated transfers.
The TRAM offers far at a remarkably low price.
The TRAM features an innovative support system that secures the client using two back belts with safety buckles. This enables the caregiver to prepare the client quickly for a safe transfer. Unlike other transfer devices, the TRAM has no slings and requires little or no preparation to transfer clients.
- An ultralight compact frame that’s easy to maneuver in tight spaces
- Intuitive controls and adjustments.
- A body support system that eliminates any lifting by the caregiver, reducing back strain.
- 350-lb. weight capacity and a powerful battery drive that can deliver over 70 lifts on a single charge

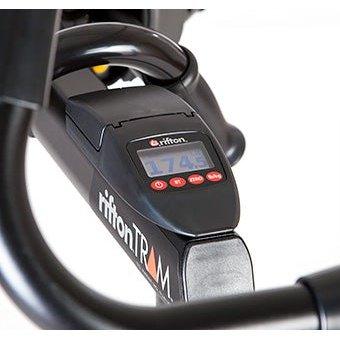

- Allowing you to weigh your client while performing a routine transfer.

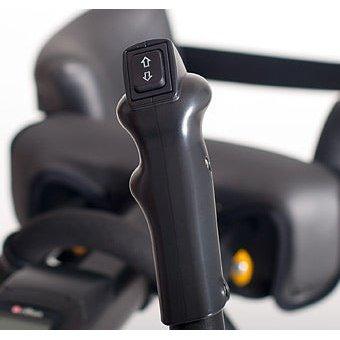

Raise and lower the TRAM using the single button built into the right steering handle. When the TRAM is being used as a sit-to-stand device, the caregiver can pull back on the handle to help raise the patient.
The TRAM features an innovative support system that secures the client using two back belts with safety buckles. This enables the caregiver to prepare the client quickly for a safe transfer. Unlike other transfer devices, the TRAM has no slings and requires little or no preparation to transfer clients.
| Overall length |
45½ |
45½ |
| Overall width |
27½ – 46 |
27½ – 46 |
| Overall height |
43½ – 58 |
43½ – 58 |
| TRAM weight |
70 lbs |
70 lbs |
| Turning diameter |
50 |
50 |
| Floor to top of base leg for furniture clearance |
6¾ |
4¼ |
| Minimum user armpit height (when standing or ambulating) |
30½ |
30½ |
| Maximum user height (when standing or ambulating) |
76 (6'4) |
76 (6'4) |
| Maximum working load (lbs) |
350 |
350 |
| Technical specifications |
| Lifting speed |
1½ inch/sec with no load |
| Batteries |
12V, 2.9 Ah valve-regulated lead-acid gel-type batteries. (Replacement batteries available from Rifton.) |
| Battery charger |
Wall-mounted charger, 100 – 240 V AC, max 650 mA |
| Motor |
24V, 6A, permanent magnet motor |
| Emergency lowering |
Electrical |
| Wheels |
Front: 100mm dual with brake; Rear: 100mm dual |
